COGENG 267-7969 Wiring Harness for CAT E324D & E325D Excavators

Introduction

The Caterpillar E324D and E325D excavators are powerful, reliable machines built for heavy-duty excavation, mining, and construction applications. These models are part of CAT's D-series family, known for their fuel efficiency, advanced hydraulics, and robust electronic control systems. However, the wiring harness – the central nervous system of the machine – is constantly exposed to vibration, heat, moisture, dirt, and mechanical stress. Over time, insulation cracks, terminals corrode, and wires break internally, leading to frustrating electrical faults and costly downtime.

Today we're introducing the COGENG 267-7969 wiring harness – a high-quality aftermarket replacement specifically designed for CAT E324D and E325D excavators. This harness is a direct replacement for the original Caterpillar part number 267-7969.

In this comprehensive guide, we'll cover:

What the 267-7969 wiring harness does
Product features and specifications
Buying points and unique characteristics
Whether it can replace the original CAT part
Safety considerations
Logistics and shipping options
Installation tips and FAQs

Why the Wiring Harness Matters on CAT E324D/E325D

The wiring harness on the E324D and E325D is the primary electrical link between the engine ECU, the hydraulic controller, the cab, and all chassis-mounted sensors and actuators. It carries:

Power and ground to the ECU, sensors, solenoids, and relays
CAN bus communication between controllers, the display, and diagnostic ports
Sensor signals for fuel pressure, coolant temperature, oil pressure, hydraulic pressure, boom/arm position, and swing angle
Control signals for fuel injectors, hydraulic solenoids, swing brake, travel motors, and work lights
Operator interface – joysticks, switches, throttle dial, and display

When this harness starts to fail, you may experience:

Intermittent starting or crank-no-start conditions
Check Engine Light with multiple unrelated fault codes
Engine derating (loss of power or limp mode)
Hydraulic functions becoming sluggish, jerky, or unresponsive
Display panel flickering, freezing, or going blank
Blown fuses with no obvious cause
Communication errors with CAT Electronic Technician (ET) diagnostic tool
Sudden machine shutdowns – dangerous on active job sites

Given the high cost of dealer repairs – often exceeding $2,000–$3,000 for a genuine CAT harness – replacing a damaged harness with a high-quality aftermarket equivalent is a smart and cost-effective decision.

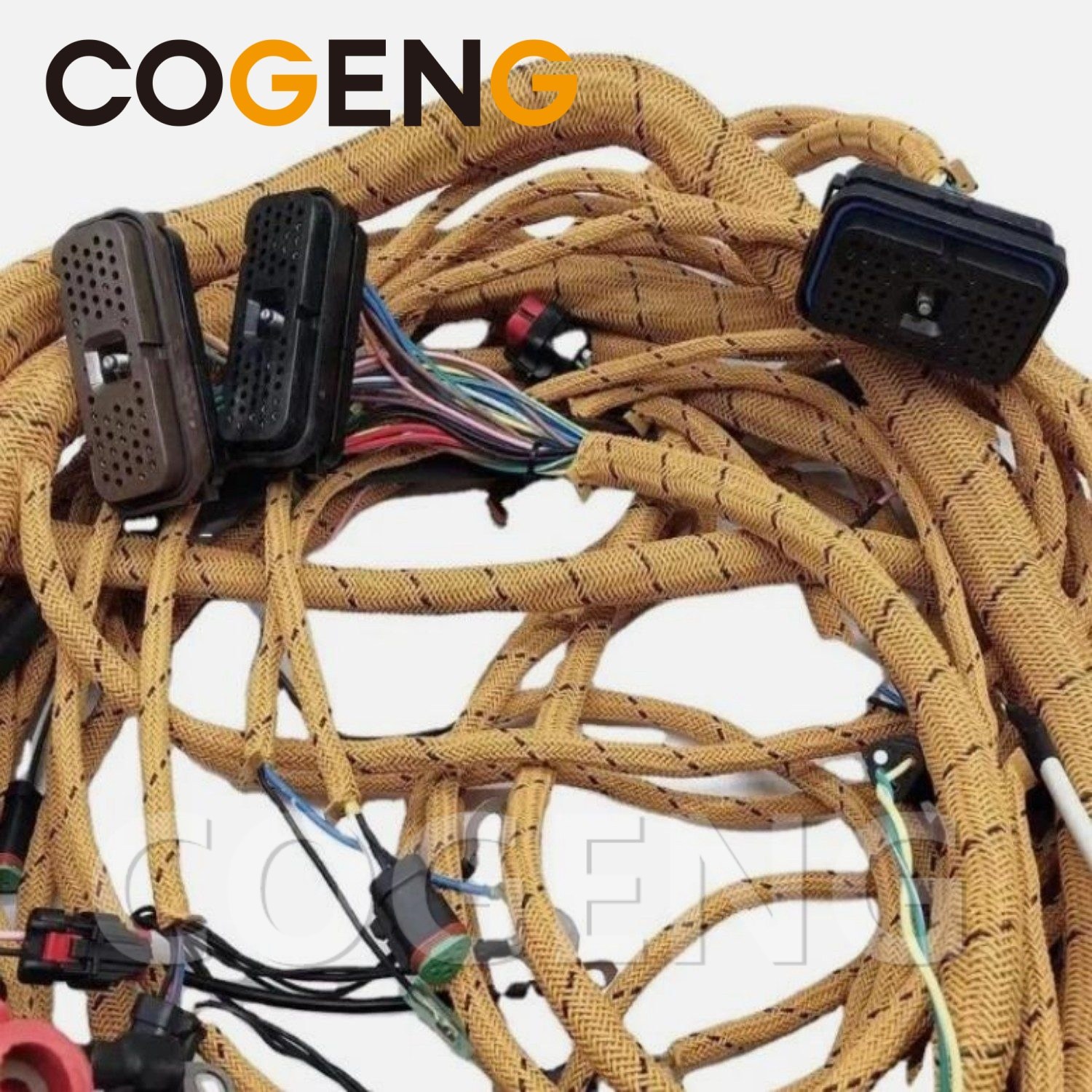

Product Overview: COGENG 267-7969 Wiring Harness

Part Number Details

Replaces OEM Part No: 267-7969
COGENG Reference: Custom-built to match 267-7969 specifications exactly

This harness is a pin-to-pin, connector-to-connector replacement. No cutting, splicing, or modification is required.

Machine Compatibility

This wiring harness is specifically designed for:

Caterpillar E324D Excavator
Caterpillar E325D Excavator

These two models share the same electrical architecture, making this harness a direct fit for both. Always confirm your machine's serial number and original harness part number before ordering – but if your original is 267-7969, this COGENG harness is the correct replacement.

Note on Model Naming: The "E" prefix in E324D and E325D typically denotes the European or export version, but the harness is also compatible with standard 324D and 325D models that use the same part number. Always verify with your original part number.

Application

This harness typically connects:

Main ECU (engine control unit) to chassis and cab systems
Hydraulic controller to pump solenoids and pressure sensors
Cab junction block to switches, joysticks, and display
Battery power distribution to all electrical loads
CAN bus backbone between all electronic modules

Material and Construction – Engineered for Extreme Durability

Material: Iron (conductors and terminals) + Rubber (insulation and sheathing)

Iron (high-conductivity copper alloy conductors and terminals): Provides low electrical resistance, high current-carrying capacity, and secure crimped connections. Terminals are typically tin-plated or gold-plated for corrosion resistance – critical for machines operating in wet or salty environments.
Rubber (EPDM-grade or cross-linked polyethylene insulation): Offers excellent resistance to heat, oil, abrasion, moisture, UV, and ozone – essential for harnesses exposed to the elements, especially on the chassis and engine bay.

Why this combination is critical for the E324D/E325D:

Feature	Benefit
High heat resistance	Withstands engine bay and hydraulic temperatures up to 125°C
Oil and chemical resistance	Unaffected by diesel, hydraulic fluid, grease, or coolant
Abrasion protection	Resists chafing against metal edges and vibrating components
UV and weather resistance	Maintains flexibility and integrity in sun, rain, snow, and mud
Flexibility	Easy to route through tight chassis gaps, even in cold weather
Moisture sealing	Prevents corrosion and short circuits in wet and muddy conditions
Mechanical strength	Resists pulling and tension during installation and operation

This material choice ensures that your replacement harness lasts as long as or longer than the original CAT part – typically 5,000–10,000 operating hours under normal conditions.

Key Features, Buying Points, and Unique Characteristics

1. Direct OEM Replacement – No Modifications Required

Every wire gauge, color code, connector type, terminal pinout, and routing length is matched to the original CAT 267-7969 specifications. It plugs in exactly where the old harness did – no cutting, splicing, soldering, or adapters. This means:

Faster installation – less labor time
Lower risk – no wiring mistakes
Immediate operability – machine runs as soon as installation is complete

2. ISO9001 Certified Quality

COGENG operates under an ISO9001:2015-certified quality management system. This guarantees:

100% continuity testing on every circuit
Insulation resistance testing (500V DC – no shorts to ground)
Connector insertion and pull-out force verification
Precision wire cutting, stripping, and crimping with controlled force
Material traceability from raw material to finished goods
Regular third-party audits

3. Pre-Terminated with Original-Style Connectors

The harness comes fully assembled with all original-style connectors, protective sheathing, grommets, and mounting clips. It's ready to install right out of the box. Connector types include:

Main ECU connector (typically 70-pin or 120-pin, matched to original)
Cab interface connectors
Sensor and solenoid connectors (Deutsch, AMP, TE, or Molex styles – all matched to OEM)

4. Cost-Effective Alternative to OEM

Genuine CAT 267-7969 harnesses can be extremely expensive – often $1,500–$3,000 depending on region and availability. COGENG offers the same fit, form, and function at a significantly lower price – typically 40–60% savings – without compromising quality or safety.

5. Visible Quality – Every Harness Is Inspected

Each harness is visually inspected and electrically tested before packing. We check:

Wire continuity on every circuit (no opens)
Insulation resistance (no shorts to ground or between circuits)
Connector pin retention (pins don't push out)
Sheathing integrity (no cuts or nicks)
Correct wire colors and markings (matched to CAT wiring diagrams)

6. Flexible Trial Order Policy

You don't need to buy a bulk quantity to test quality. We accept trial orders as small as 1 piece – perfect for:

Independent repair workshops
Small fleet owners
Parts distributors evaluating a new supplier
Mechanics wanting to verify fitment before bulk orders

7. Global Availability with Fast Shipping

Whether you're in North America, Europe, Asia, Africa, South America, Australia, or the Middle East, we can ship to you via express, air, or sea freight.

8. 12-Month Warranty

COGENG provides a 12-month warranty against manufacturing defects. This gives you peace of mind knowing that your investment is protected.

9. Technical Support

Our team understands CAT electrical systems and can help with part identification, cross-referencing, and installation questions.

Can It Replace the Original CAT 267-7969 Harness?

Yes – completely and safely.

Here's why:

Dimensionally identical: Same length, same connector positions, same mounting points, same branch routing. We reverse-engineered the original CAT harness using OEM specifications to ensure exact replication.
Electrically identical: Same wire gauge (AWG), same terminal ratings, same insulation thickness, same circuit paths. Wire colors match the original CAT wiring diagram, making troubleshooting easier.
Functionally identical: All sensor signals, power feeds, ground paths, and CAN bus lines are routed exactly as per OEM design. The ECU, hydraulic controller, and display will not know the difference.
Plug-and-play: No adapters, no modifications, no "workarounds."

The only difference is the brand and the price. COGENG does not claim to be a genuine CAT part, but it is manufactured to match or exceed OEM performance standards. It is not a "universal" or "cut-to-fit" product – it is a dedicated replacement for 267-7969.

Is It Safe? – Addressing Your Safety Concerns

Safety is the top priority for any excavator owner, operator, fleet manager, or workshop technician. Here's how the COGENG 267-7969 harness ensures safety:

Material Safety

The rubber insulation is flame-retardant and self-extinguishing (meets UL94 V-0 / ISO 6722 standards).
Terminals are made of lead-free copper alloy – compliant with RoHS environmental regulations.
Outer sheathing is resistant to abrasion, oil, and hydraulic fluid – reducing the risk of chafing and short circuits that could cause fires.
All materials are selected for low smoke emission in the event of a fire.

Electrical Safety

Each harness undergoes 100% hi-pot testing (high-potential dielectric test at 500V DC) to ensure there are no shorts between circuits or to ground.
Insulation resistance is tested at 500V DC – well above the machine's operating voltage (24V), with readings typically exceeding 100 megohms.
Wire gauge is selected to handle the maximum current of each circuit with a built-in safety margin (typically 125% of rated load).
All terminals are crimped with controlled force and pull-tested to prevent loose connections that could arc, overheat, or cause intermittent faults.
Connectors are polarized and keyed to prevent reverse polarity or mismating.

Installation Safety

Because it's a direct plug-and-play replacement, there is zero risk of incorrect wiring – connectors are color-coded, labeled, and physically keyed to prevent mismating.
Included protective sheathing and grommets prevent chafing against sharp metal edges – a common cause of electrical fires and short circuits.
All mounting clips and tie-wrap locations are matched to the original, ensuring the harness stays securely routed away from hot and moving parts.

Operational Safety

Reliable signals to the ECU mean the engine runs at correct air-fuel ratios and injection timing – preventing overheating, over-fueling, excessive emissions, or sudden shutdowns.
Stable CAN bus communication means predictable machine behavior – no unexpected movements, unintended swing, or sudden hydraulic release.
Consistent hydraulic control signals mean smooth, predictable boom/arm/bucket movements – critical for operator safety when working near personnel, structures, or other equipment.
Reliable sensor readings ensure proper hydraulic pressure limiting – preventing hose bursts or cylinder damage.

Compliance

Our harnesses are manufactured in compliance with ISO9001:2015 quality standards and applicable international electrical safety standards.
Materials meet RoHS and REACH compliance requirements.

In short: Yes, this harness is safe. It meets or exceeds the same safety standards as the original CAT 267-7969 harness.

Packing: PP bag inside, carton box outside

Inner PP bag: Protects against dust, static, and light moisture during storage and transit.
Outer carton box: Prevents crushing, bending, or impact damage during international shipping.

Each harness is carefully coiled, secured with cable ties to prevent kinking, and labeled with the part number for easy identification. This double-layer packaging ensures your harness arrives in perfect condition – whether you order one piece or a pallet.

Supply capacity: 500 PCS in stock

MOQ: Acceptable trial order

We understand that buyers often want to verify product quality and fitment before committing to large volumes. That's why we welcome trial orders. Whether you're an independent mechanic, a rental company, a mining operation, a quarry, or a parts distributor, you can order just 1 or 2 pieces to start.

Payment Terms – Multiple Options for Global Buyers

To make international purchases hassle-free, COGENG accepts a wide range of payment methods:

Payment Method	Best For
Western Union	Fast for small-value orders
L/C (Letter of Credit)	Secure for large commercial contracts
T/T (Telegraphic Transfer)	The most widely used and economical method
MoneyGram	Convenient for quick payments
D/A (Documents against Acceptance)	For established trading relationships
D/P (Documents against Payment)	Secure for new customers

Discuss the best option with our sales team to suit your company's procurement policies and country-specific banking requirements.

Shipping Methods – Fast, Reliable, and Flexible

We offer multiple shipping solutions to get your harness to you as quickly and cost-effectively as possible:

Shipping Method	Best For	Estimated Transit Time
Express (DHL, FedEx, UPS, TNT)	Trial orders, emergency repairs	3–7 business days
Air Freight	Medium-sized orders (50–200 kg)	7–10 business days
Sea Freight	Bulk orders (LCL/FCL containers)	20–40 days (most economical)

All shipments are fully tracked. For express courier, you'll receive a tracking number within 24 hours of dispatch. We handle all export documentation – commercial invoices, packing lists, and certificates – to ensure smooth customs clearance.

Place of Origin: Guangdong, China

Guangdong is a global hub for automotive and heavy equipment electrical component manufacturing. The region has:

Advanced wire processing machines (cutting, stripping, crimping)
Precision connector injection molding
Automated testing equipment (continuity, hi-pot, insulation resistance)
Strict quality control labs
Experienced engineers and technicians

COGENG leverages this ecosystem to produce harnesses that meet international standards while keeping costs competitive.

Brand name: COGENG

COGENG is a well-established brand in the construction equipment aftermarket. Our customers include:

Independent repair workshops
Equipment rental companies
Mining and quarry operations
Construction contractors
Parts distributors in over 40 countries

Key brand advantages:

Advantage	Benefit
Factory-direct pricing	No middleman markups – you save 40–60%
Rapid response	Quotes and technical support in hours, not days
Large inventory	Most items ship within 48 hours
12-month warranty	Against manufacturing defects
No-hassle returns	If it doesn't fit (with proper verification), we work with you to resolve it
Technical expertise	Our team understands CAT electrical systems and can help with identification
Quality focus	ISO9001-certified processes ensure consistent quality

How to Confirm the Correct Harness for Your CAT E324D/E325D

Follow this 5-step checklist:

Identify your machine model – confirm it is CAT E324D or E325D. Check the serial number prefix (commonly FAL, KAL, KDT, or similar).
Locate the original harness part number – look for a tag or label on the harness near the main ECU connector, firewall, or cab junction block. It may be printed on the harness sheathing.
Check the part number – if it says 267-7969, this COGENG harness is the correct replacement.
Inspect the main connectors – compare the shape and pin count of the ECU connector (typically 70-pin or 120-pin) and cab interface connectors. Match the number of pins and connector keying.
Send photos to COGENG support – our team can cross-reference quickly if you're unsure. We can also verify via your machine serial number and production year.

Pro tip: The E324D and E325D are very similar in electrical architecture. If your harness has 267-7969, our harness will fit both models.

Signs That Your CAT 267-7969 Harness Needs Replacement

Watch for these common indicators:

Symptom	What It May Mean
Check Engine Light with multiple unrelated codes	Harness damage causing signal cross-talk or open circuits
Engine cranks but won't start	Loss of power or signal to ECU, injectors, or sensors
Intermittent loss of throttle response	CAN bus or accelerator pedal signal interruption
Hydraulic functions become slow, jerky, or unresponsive	Solenoid or sensor signal loss – often due to harness chafing
Display panel flickers or goes dark	Power or ground interruption to cab systems
Burning smell from the engine bay or cab	Insulation melting or short circuit – immediate attention required
Blown fuses for no apparent reason	Intermittent short to ground – typically harness chafing
Diagnostic tools cannot communicate with ECU	CAN bus wires broken or shorted
Intermittent issues that come and go with vibration or weather	Classic symptom of broken internal wires or corroded connectors

If you experience any of these, have a qualified technician inspect the harness immediately. Replacing it proactively can save you from costly ECU damage, hydraulic component failure, or even a fire.

Installation Tips for the COGENG 267-7969 Harness

Caution: Installation should be performed by a qualified CAT technician. The following is general guidance for reference.

Tools You May Need:

Basic hand tools (screwdrivers, wrenches, sockets)
Cable ties (zip ties) – use OEM-specified type
Dielectric grease (for connector sealing)
CAT Electronic Technician (ET) software or compatible diagnostic tool

Step-by-Step Installation:

Disconnect the battery – negative terminal first. Wait at least 5 minutes for the ECU to power down completely.
Document the original routing – take clear photos from multiple angles. Mark clip positions, tie-wrap locations, and grommet placements with tape or a marker.
Unplug connectors carefully – use the correct release tabs to avoid damaging connectors. Label each connector with tape if you're unsure (e.g., "ECU", "Hydraulic", "Cab").
Remove the old harness – note where each branch goes. Carefully remove all clips, grommets, and brackets. Inspect the old harness for visible damage – this helps confirm the diagnosis.
Inspect and clean mounting points – ensure all grommet holes are clean and free of debris, rust, or sharp edges.
Route the new harness – follow the original path exactly. Pay special attention to:
- Avoiding hot exhaust manifolds and turbochargers
- Avoiding rotating parts (fan, belts, drive shafts)
- Routing away from sharp metal edges
- External routing under the cab and along the boom/arm
Secure with clips and cable ties – do not allow the harness to sag, rub, or pull on connectors. Use the factory-specified tie-wrap locations. Leave a slight service loop at connectors to prevent strain.
Connect all sensors, solenoids, and modules – ensure each connector clicks and locks firmly. Check that all grommets are seated correctly in their holes.
Apply dielectric grease – to all connectors that are exposed to moisture (chassis connections) to prevent future corrosion.
Reconnect battery – negative terminal last. Turn key to ON (do not start) and check for error codes using CAT ET or a compatible diagnostic tool.
Clear any stored codes – start the engine and test all functions:
- Throttle response
- Hydraulic controls (boom, arm, bucket, swing, travel)
- Work lights, horn, display, air conditioning, radio
- All switches and joystick functions
Verify operation – check for any new fault codes after test operation. Run the machine through a full work cycle to ensure all sensors are communicating and all solenoids are responding correctly.

Typical installation time: 4–8 hours depending on technician experience, machine condition, and whether the cab needs to be tilted or lifted.

Frequently Asked Questions

Q1: Is this a genuine CAT part?

No – it is a high-quality aftermarket replacement manufactured by COGENG. It is not produced by Caterpillar but is built to OEM specifications.

Q2: Will this harness fit my CAT 324D or 325D (without the "E" prefix)?

If your original part number is 267-7969, yes. The "E" typically denotes European/export versions, but the harness is electrically identical.

Q3: Will it fit CAT 320D or 323D?

No – the 267-7969 harness is specifically for E324D and E325D. The 320D/323D use different harnesses (such as 291-7590/291-7589). Always check your original part number.

Q4: Do I need to modify anything during installation?

No. It's a direct plug-and-play replacement – no cutting, soldering, or adapters required.

Q5: Is the harness safe to use?

Absolutely. It undergoes rigorous electrical testing (continuity, insulation resistance, hi-pot) and uses flame-retardant, oil-resistant, and abrasion-resistant materials.

Q6: Can I order just one piece?

Yes – trial orders are accepted. You can start with 1 or 2 pieces.

Q7: How long does shipping take via DHL/FedEx?

Typically 3–7 business days to major destinations worldwide. Remote areas may take longer.

Q8: What warranty do you offer?

12 months against manufacturing defects. Improper installation, accident damage, or normal wear and tear are not covered.

Q9: Does this harness include the ECU connector?

Yes – all original connectors, including the main ECU connector, are included pre-terminated with the correct pin configuration.

Q10: How do I confirm this harness fits my machine?

Check the original part number label on your existing harness. If it says 267-7969, this is the correct replacement. You can also send your machine serial number to our sales team for verification.

Q11: What if I have a CAT E325D but my harness number is different?

If your harness number is not 267-7969, do not order this harness. Contact our sales team with your original part number, and we will help you find the correct match.

Q12: Do you provide a wiring diagram?

A basic pinout diagram may be available upon request. For detailed electrical schematics, refer to your CAT service manual.

Q13: What is the difference between 267-7969 and other CAT harnesses?

Different CAT models and even different production years of the same model can use different harnesses due to changes in ECU, sensors, or emissions requirements. Always match the part number exactly.

Conclusion – A Smart, Safe, and Cost-Effective Replacement for Your CAT E324D/E325D

The COGENG 267-7969 wiring harness for CAT E324D and E325D excavators offers everything you need:

✅	Benefit
Direct fit	One harness replaces OEM 267-7969 – no modifications
Safe	Tested to ISO9001 and electrical safety standards
Durable	Iron + rubber construction for harsh environments
Affordable	40–60% savings over genuine CAT parts
Available	500 PCS in stock – ready to ship
Flexible	Trial orders and multiple payment/shipping options
Warranted	12-month warranty against manufacturing defects

If your CAT E324D or E325D is showing electrical issues – intermittent faults, error codes, or starting problems – don't wait for a complete breakdown. Replace the wiring harness now with COGENG and get your excavator back to peak productivity.

Call to Action:
🔌 Ready to order your COGENG 267-7969 wiring harness for CAT E324D/E325D? Contact our sales team today for a quick quote.
✅ Mention part number 267-7969 or model CAT E324D for priority service.
✈️ Worldwide shipping via DHL, FedEx, UPS, or sea freight – we deliver to your door.

Contact COGENG

📞 Phone: +86-185-2913-1515 🌐 Instagram

📧 Email: hugo@cogeng.net 🌐 Facebook：Excavator Parts Selection and Replacement Community

💬 WhatsApp +86-185-2913-1515 Facebook: Excavator Wiring Harness

💬 WeChat: +86-185-7865-1106 Facebook: Excavator Wire Harness

🌐 Website: cogeng.net Facebook: Excavator SolenoidValve
